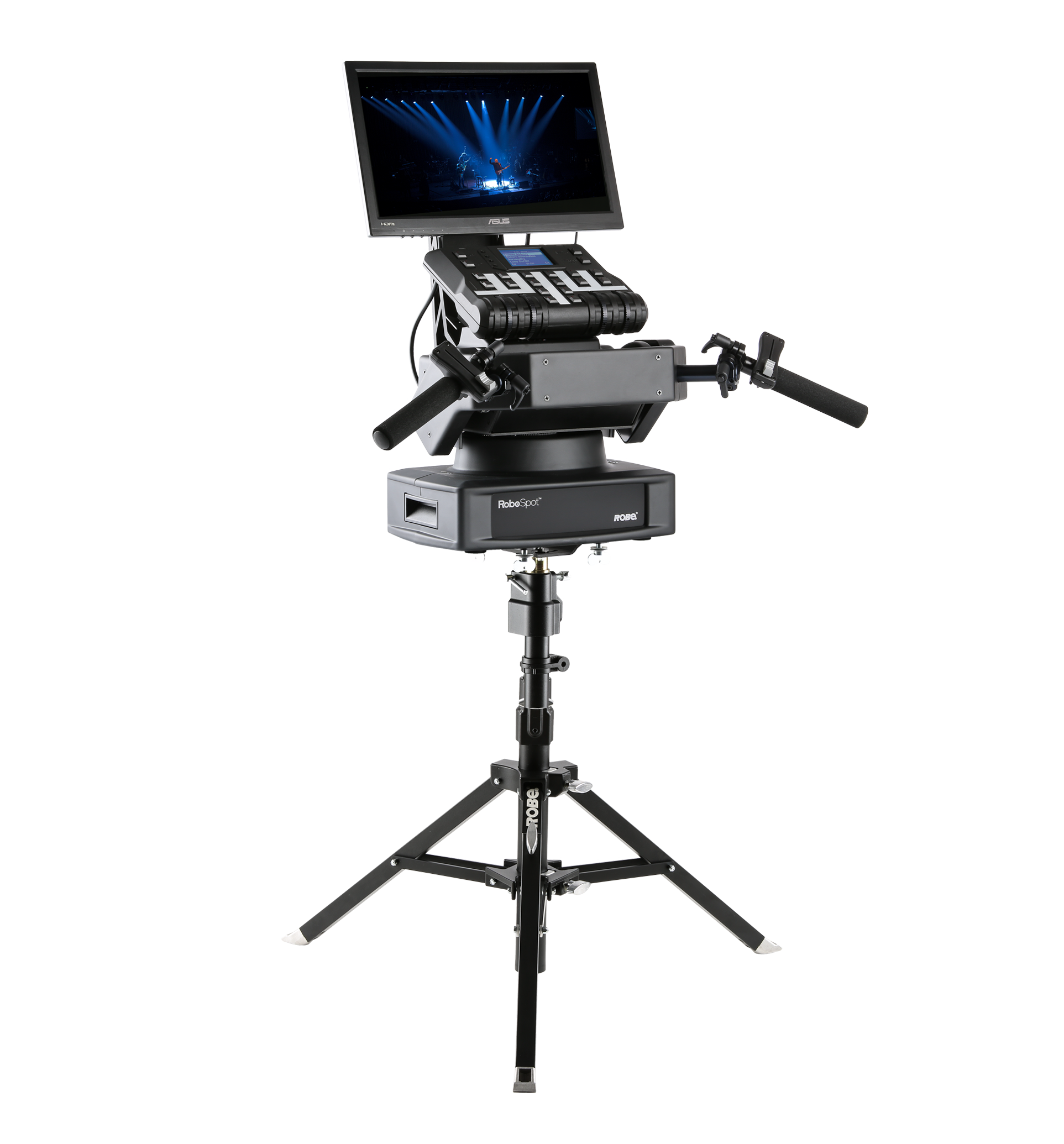

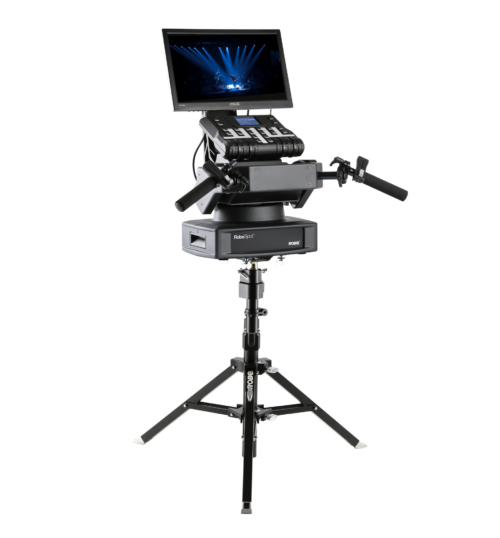

Pupitre de pilotage pour système de poursuite local ou déporté pouvant être accompagné d’une MotionCamera.

MAIN FEATURES

• 15.6″ monitor
• QVGA Robe touch screen with battery backup
• 4 control jog-wheels
• 10 preset buttons with a direct access of the pre-programmed features
• Activation & Blackout buttons
• Pan & Tilt freeze buttons
• Manual movement control with position indication on the screen
• 2 faders mounted on the handles with direct control of the key features 0-100% /for example dimmer and iris), assignable to any BMFL properties (focus, zoom, frost, etc)
• User setting of controllable attributes
• Saving and uploading of custom settings
• Compatible with the ROBE BMFL Spot, Blade, WashBeam, FollowSpot and FollowSpot LT, T1 Profile, DL4S, DL7S, MegaPointe and Pointe
• One RoboSpot can control up to 12 fixtures

CONTROL AND PROGRAMMING

• Display: QVGA Robe touch screen with battery backup
• Movement control: manual

ELECTRICAL SPECIFICATION AND CONNECTIONS

• Power supply: Electronic auto-ranging
• Input voltage range: 100-240 V, 50/60 Hz
• Power consumption: 15 W
• Power in connector: Neutrik powerCON TRUE1
• DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
• Ethernet port in/out: RJ45

APPROVALS

• CE Compliant
• cETLus Compliant

VIDEO INPUTS

• Ethernet port in: RJ45

RIGGING

• Mounting positions: on tripod (supplied with the product)
