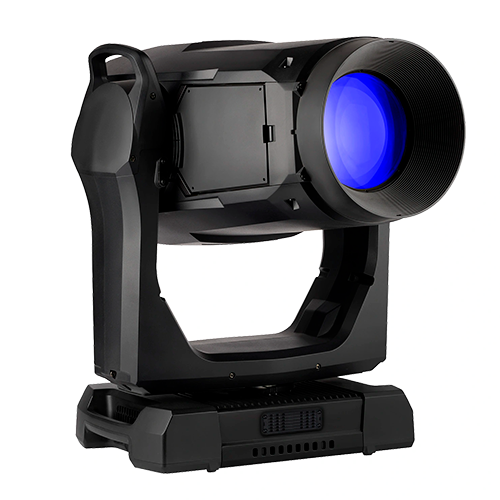

MARTIN VIPER XIP

MARTIN VIPER XIP

MARTIN VIPER XIP

Caractéristiques techniques

  • PhysicalWeight: 37.0 kg (81.1 lbs.)Minimum center-to-center distance in side-by-side installation: 704 mm (27.7 in + Clearance)Length (head): 594 mm (23.4 in.)Length (base): 429 mm (16.9 in.)Width (base): 281 mm (11.1 in.)Width (across yoke): 479 mm (18.9 in.)Height (head straight up): 758 mm (29.8 in.)Height (maximum): 776 mm (30.6 in.)
    Dynamic EffectsPre-programmed effects: Two ranges of FX, independent or synchronized/combinedColor mixing: CMY, independently variable 0 – 100%Color wheel: 5 x dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random colorGobo animation: Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and directionIris: Variable 0 – 100%, pulse effectsZoom: MotorizedColor temperature control: Variable 5800 – 2850 KFraming: Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 – 100%Prism: 4-facet, indexing and continuous rotation2 x Frost: Variable 0 – 100%, Heavy and LightDimmer/shutter: 0 – 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackoutDimming options: Choice of four dimming curvesPan: 540°, coarse & fine control and speedTilt: 268°, coarse & fine control and speedP3: Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video controlFocus: Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinityRotating gobo wheel 1: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotationRotating gobo wheel 2: 7 x interchangeable gobos + open, indexing, continuous rotation and shake, gobo wheel continuous rotationGobo Color Temperature Correction: Automatic
    Control and ProgrammingControl Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3Protocol detection: AutomaticSetting and addressing: Display Menu, RDM, RDM over Art-Net or P3DMX Modes: 3, Basic, Extended and LudicrousDMX channels: 54 (Basic), 64 (extended), 70 (Ludicrous)16-bit Controllable Parameters: Dimming, Color Mixing + CTO, Gobo Rotation, Framing/Framing rotation, Iris, Prism Rotation, Animation wheel Rotation, Zoom, Focus, Pan and TiltFixture Identification: User-settable ID numberDMX compliance: USITT DMX512-ARDM compliance: ANSI/ESTA E1.20Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-NetsACN Compliance: ANSI E1.31 – 2016Martin P3 Compliance: P3 System Controller Software 5.1.0 or newerDMX/RDM Transceiver: Galvanic-isolated RS-485Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)Firmware update: USB memory device, via DMX using Martin Companion or via Ethernet using P3 System ControllerNFC Interface: Martin Companion iOS and Android AppLocal User Interface: Backlit LCD Display with battery-powered operationWireless DMX: via Universal Connect Module
    OpticsFront lens diameter: 150 mmZoom range: 1:9 zoom range (5.7° – 54° field angle)Light source: 55 x 20 W White LEDs in a custom Martin engineMinimum LED lifetime: 50,000 hours (to >80% luminous output)* / >20,000 hours (to >90% luminous output)*Maximum Total LED Engine Power: 760 W
    *Figure obtained under manufacturer’s test conditions
    Photometric DataLight engine luminous output: 56,000 lumensLED refresh rate : 2,400 Hz
    Photometric Data With Spectral Enhancement FilterFixture luminous output: 18,700 lumensCRI (Color Rendering Index): 90 (+/- 3)
    Photometric Data StandardFixture luminous output: 28,000 lumensCRI (Color Rendering Index): 68 (+/- 3)TM-30 Rf (IES TM-30-15 Fidelity Index): 66 (+/- 3)TM-30 Rg (IES TM-30-15 Gamut Index): 94 (+/- 3)TLCI (Television Lighting Consistency Index): 44 (+/- 3)CCT: 5,800 K (+/- 250 K)Peak Luminous Intensity: 2.4 Mcd
    ConstructionHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP54RoHS: CompliantREACH: Compliant
    GobosMaximum image diameter: 22 mm (0.866 in.)External diameter: 27.1 mm +0 / -0.2 mm (1.067 in. +/ – in.)Maximum gobo thickness: 1.1 mm (0.04 in.)Coating: Heavy matted aluminumMaterial: Borofloat 33
    InstallationMounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracketsLocation: Indoor or Temporary Outdoor use, must be fastened to surface or structureOrientation: Any, except with display facing upwards in outdoor applicationMinimum distance to combustible materials: 0.2 m (8 in.)Minimum distance to illuminated surfaces: 3.25 m (10.7 ft.)
    ConnectionsAC mains power in/thru: Neutrik Rean powerCON TRUE1 TOPFirmware from flash memory: USB 2.0 type C portDMX and RDM data in/thru: Neutrik 5-pin locking XLR TOPEthernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOPAccessory Plug-In: Universal Connect Module Slot
  • ElectricalAC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17.0 A
    Typical earth-leakage current: 0.7 mA
    Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
    Max current draw: 11.0 A @ 100 V / 120 V , 5.2 A @ 200 V ,  4.6 A @ 240 V
    Typical current draw: 9.5 A @ 100 V , 7.8 A @ 120 V , 4.4 A @ 208 V , 4.0 A @ 230 V , 3.9 A @ 240 V *
    Power Consumption
    Maximum: 1040 W
    Typical: 945 W *
    Idle: 120 W *
    Hibernation: 6 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

    ThermalCooling: Forced air (temperature regulated, low noise)Maximum ambient temperature (Ta max.): 40° CMinimum ambient temperature: -10° C (Ta min) – Warm up condition may applyMaximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)Total heat dissipation (calculated, +/- 10%): 3,550 BTU/hr.
    Acoustic DataSound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.7 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): TBD dB(A)
    WarrantyFixture: 2 yearsLight Engine: 5 years
    EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantFSC: Certified cardboard outer packaging
    Recycled EPS inner Packaging    Efficacy (max output): 29.5 lm/wLWR*: 760 lm/kg (345 lm/lb)
    LWR = Lumen-to-Weight Ratio
    ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1),EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035;EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCAThailand: TIS
    Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
    Multi-Language Safety and Installation Manual

    Related ItemsMartin Companion Cable (for firmware update over DMX): P/N 91616091Martin Companion Software (for firmware update over DMX): Free download from www.martin.com
    AccessoriesOptical
    MAC Viper XIP Hotspot Filter (Gobo Replacement): P/N MAR-91614065HU

    Transport and Storage
    Flightcase for 1 x MAC Viper XIP: P/N MAR-91515060
    Flightcase for 2 x MAC Viper XIP: P/N MAR-91515061
    MAC Viper Flightcase XIP Upgrade Kit: P/N MAR-91515062
    Additional SiP Foam Flightcase Insert for MAC Viper XIP: P/N MAR-91611863HU

    Consumables
    Air filter, MAC Quantum / Ultra / Viper XIP, set of 12: P/N 50400765
    CR123A 3-volt lithium battery: P/N 05801011

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

    Power Linking Cables
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
    Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Half-coupler Clamp: P/N 91602005
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Verified Third-Party AccessoriesBeam Control
    MAC Viper XIP Concentric Ring: P/N City Theatrical 2816
    MAC Viper XIP Hexcel Louver: P/N City Theatrical 2817

    FollowSpot
    MAC Viper XIP FolowSpot Handle: P/N City Theatrical 2815

    Universal Connect Module
    Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
    Multiverse Connect Module 900MHz: P/N City Theatrical 5915

    Ordering InformationMAC Viper XIP in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250300HUMAC Viper XIP White in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250310HUMAC Viper XIP in SIP (in cardboard box with SIP foam flight case insert): P/N MAR-90250305HU
