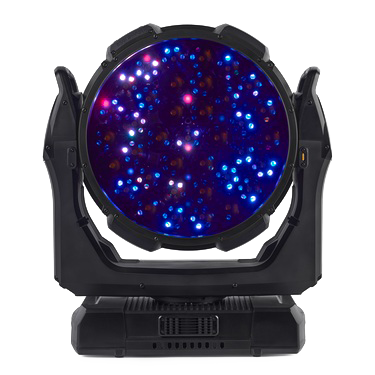

MARTIN MAC AURA RAVEN XIP

MARTIN MAC AURA RAVEN XIP

MARTIN MAC AURA RAVEN XIP

Caractéristiques

  • Plus de 24000 lumens en sortie
  • Silencieux et doté d’un zoom extrêmement rapide avec une plage allant de 6 à 50 degrés
  • Moteur LED RGBL (Rouge/Vert/Bleu/Jaune-vert), offrant une qualité de lumière supérieure (CRI / TM-30 / TLCI)
  • Large lentille frontale de 343 mm (13,5 pouces) de diamètre
  • Lentille sombre, offrant un aspect beaucoup plus discret et un contraste supérieur pour l’effet rétroéclairé Aura pixelisé.
  • Effet rétroéclairé Aura pixelisé avec 234 LEDs RGB.
  • Contrôle total des pixels sur 37 LEDs principales et 234 LEDs de rétroéclairage Aura.
  • DMX, Art-Net, sACN & contrôle Martin P3
  • Technologie intelligente XIP résistante aux intempéries pour une utilisation temporaire en extérieur
  • Projecteur le plus compact et léger de sa catégorie
  • Poignées sur le support pour une manipulation facile du projecteur et un retournement simplifié.
  • Affichage alimenté par batterie pour la configuration et les réglages.
  • Interface NFC, prenant en charge la configuration et le diagnostic via l’application mobile Companion.
  • Emplacement du module de connexion universel, prenant en charge les modules sans fil tiers.
  • Module BeamShaper optionnel, qui peut être ajouté et qui façonne le champ lumineux projeté.

Caractéristiques techniques

  • PhysicalWidth (across yoke): 528 mm (20.8 in.)
    Width (base): 429 mm (16.9 in.)
    Height (head forward): 588 mm (23.1 in.)
    Height (maximum): 603 mm (23.7 in.)
    Depth (head): 241 mm (9.5 in.)
    Depth (base): 285 mm (11.2 in.)
    Minimum center-to-center distance in side-by-side installation: 540 mm (21 in.)
    Weight: 28.8 kg (63.5 lbs.)

    Dynamic EffectsBeam Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
    Beam Dimming options: Choice of four dimming curves
    Beam Color Mixing: RGB(L), independently variable 0 – 100%
    Beam Color Temperature Control: Variable 2,000 – 12,850 K
    Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
    Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
    Zoom: Motorized with 1:5.3 zoom ratio
    Pan: Motorized 540°
    Tilt: Motorized 250°
    Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
    Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
    Aura Dimming options: Choice of four dimming curves
    Aura Color Mixing: RGB, independently variable 0 – 100%
    Aura Color Temperature Control: Variable 2,000 – 12,850 K
    Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
    Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
    Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
    Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
    Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined; featuring foreground color, background color, speed and direction control
    LED Frequency control: Variable LED PWM control

    Control and ProgrammingControl Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3 (additional protocols, incl. wireless, available via Universal Connect Module)
    Protocol Detection: Automatic
    DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact Direct
    DMX Channels: 22, 38, 149, 266, 851 & 22
    Multi-Universe Overflow: Yes, in all DMX Modes
    16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Zoom, BeamShaper Indexing, Pan and Tilt
    Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
    Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
    Fixture identification: User-settable ID number
    DMX Compliance: USITT DMX512-A
    RDM Compliance: ANSI/ESTA E1.20
    Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
    sACN Compliance: ANSI E1.31 – 2018
    Martin P3 Compliance: P3 System Controller Software 6.2.0 or newer
    DMX/RDM Transceiver: Galvanic-isolated RS-485
    DMX/RDM Daisy-Chain Limit: 32 fixtures
    Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
    Ethernet Daisy-Chain Limit Recommendation: 50 fixtures
    Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller

    OpticsFront Lens Diameter: 343 mm (13.5 in.)
    Zoom Range: 1:5.3
    Full Zoom Range at Half Peak (Beam Angle): 6.6° – 35.3°
    Full Zoom Range at Tenth Peak (Field Angle): 9.9° – 51.0°
    Beam Light Source: 37 x 40 W RGBL LED
    Aura Light Source: 234 x 0.30 W RGB LED
    Max. Total Beam LED Engine Power: 830 W
    Max. Total Aura LED Engine Power: 70 W
    Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*
    *Figure obtained under manufacturer’s test conditions

    Photometric DataLight Engine Luminous Output: 39,000 lumens
    Fixture Luminous Output Wide: 27,000 lumens
    Fixture Luminous Output Narrow: 23,000 lumens
    Peak Luminous Intensity Narrow: 1,900,000 cd
    CCT: Variable 2,000 K – 12,850 K (+/- 200 K)
    CRI (Color Rendering Index): ≥ 82
    CQS (Color Quality Scale): ≥ 89
    TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 84
    TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 110
    TLCI (Television Lighting Consistency Index): ≥ 84
    Beam LED Refresh Rate: 2,400 Hz with fine adjustment (+/- 2%) and 19,200 Hz mode (DMX controllable)
    Aura LED Refresh Rate: 62,500 Hz
    Binning: Tight color and flux binning
    Calibration: Full Gamut Color Calibration of Beam and Aura
    Color Modes: Direct Color Mode, Extended Gamut Mode and Calibrated Color Mode
    * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
    * All Photometric Data measured at 6500 K white

    ConstructionHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP54
    InstallationMounting points: 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracketsLocation: Indoor or Temporary Outdoor useOrientation: Any, except with display/connectors facing upwards in outdoor applicationMinimum distance to combustible materials: 0.2 m (7.9 in.)Minimum distance to illuminated surfaces: 2.5 m (98.4 in.)
    ConnectionsAC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
    DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
    Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
    Firmware from flash memory: USB 2.0 type C port
    Accessory Plug-In: Universal Connect Module Slot

    ElectricalAC power: 100-240 V AC nominal, 50/60 Hz
    Power supply unit: Auto-ranging electronic switch mode
    Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
    Typical earth-leakage current: 0.7 mA
    Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
    Max current draw: 11.3 A @ 100 V / 120 V , 5.6 A @ 208 V , 4.8 A @ 230 V / 240 V
    Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V *
    Power Consumption
    Maximum: 1120 W
    Typical: 1020 W *
    Idle: 135 W *
    Hibernation: 6 W *
    * Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    Typical: full output white, no effects moving, regulated fan speed.
    Idle: no output, no effects moving, regulated fan speed.
    Hibernation: no output, motors de-energized, fans stopped, wake-up procedure to re-use fixture.

  • ThermalCooling: Forced air (temperature regulated, low noise, user-definable levels)Maximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may applyMaximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.
    Acoustic DataSound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 35.5 dB(A)Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.6 dB(A)
    EnvironmentalRoHS: CompliantREACH: CompliantWEEE: CompliantProposition 65: CompliantPackaging: FSC Certified cardboard outer packaging & Recycled EPS inner packagingEfficacy (max output): 26.4 lm/WLWR*: 937 lm/kg (425 lm/lbs.)* LWR = Lumen-to-Weight Ratio

    ApprovalsGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMUnited Kingdom: UKCAThailand: TIS
    Included ItemsTwo omega brackets with 1/4 turn fasteners for rigging clamp attachment
    SoftLens
    Multi-Language Safety and Installation Manual

    Related ItemsMartin Companion Cable (for firmware update over DMX): P/N 91616091
    Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store

    AccessoriesOptical
    MAC Aura Raven XIP BeamShaper Module: P/N MAR-91614064HU

    Transport and Storage
    Flightcase for 2 x MAC Aura Raven XIP: P/N MAR-91515064
    Additional SiP Foam Flightcase Insert for MAC Aura Raven XIP: P/N MAR-91611864HU

    Consumables
    CR123A 3-volt lithium battery: P/N 05801011

    Spare Parts
    Additional MAC Aura Raven XIP SoftLens: P/N 5145811-00

    Power Input Cables
    Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
    Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

    Power Daisy-Chain Cables
    Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
    Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

    Power Connectors
    Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
    Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

    Installation Hardware
    G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
    Half-coupler Clamp: P/N 91602005
    Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
    Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007

    Verified Third-Party AccessoriesBeam Control
    MAC Aura Raven XIP Top Hat: P/N City Theatrical 2825
    MAC Aura Raven XIP Hexcel Louver: P/N City Theatrical 2824
    MAC Aura Raven XIP Concentric Ring: P/N City Theatrical 2823

    Universal Connect Module
    Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
    Multiverse Connect Module 900MHz: P/N City Theatrical 5915

    Ordering InformationMAC Aura Raven XIP in SiP (in cardboard box with SiP foam flight case insert): P/N MAR-90250405HUMAC Aura Raven XIP in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250400HUMAC Aura Raven XIP White in Cardboard (in cardboard box with EPS, reused material): P/N MAR-90250410HU
