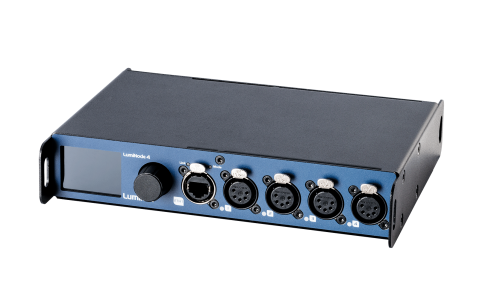

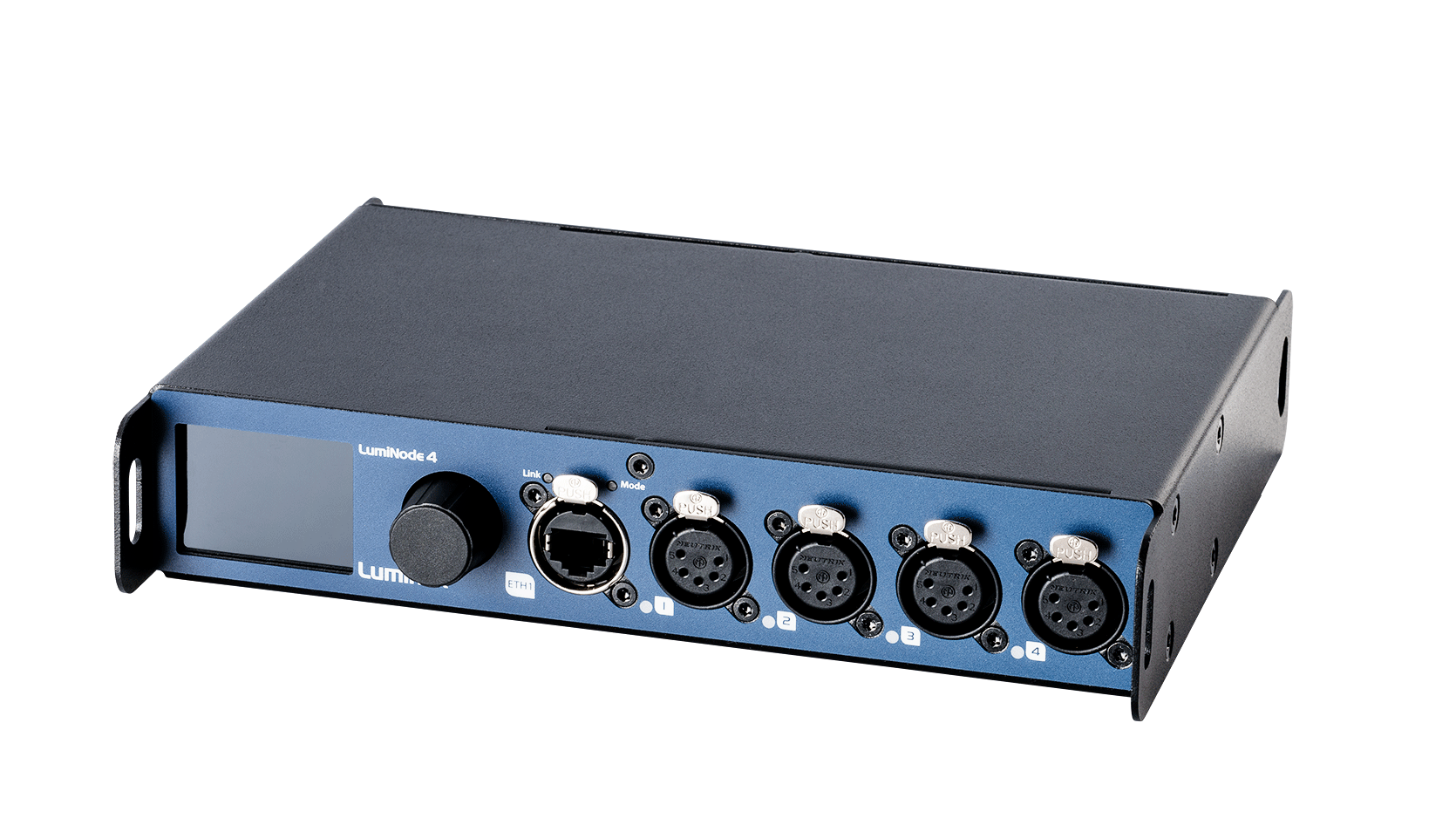

LUMINEX – LUMINODE 4

LUMINEX – LUMINODE 4

Informations complémentaires

Half 19″ or Truss mountable

LumiNode 4 is specifically designed with an all metal, robust enclosure for rack mounting or truss mounting, making it an ideal solution for touring, theatre- and studio AV installs or for use at live performances.

Equipped with 2x 1Gb Ethercon ports and 4x 5-pin DMX ports LumiNode 4 offers flexibility in a half 19″ package.  The M10 Insert and protection ears are specialy placed to mount the unit safely to any lighting structure.
Each DMX port is fully optically and galvanically isolated and can be configured as an in- or output. All relevant industry standard protocols such as Art-Net, sACN, KiNET, RTTRpl (Blacktrax) are supported and can be processed and converted by the 6 onboard process engines supporting HTP, LTP, Crossfade, Backup, Switch and Custom merging modes with soft patch functionality.
