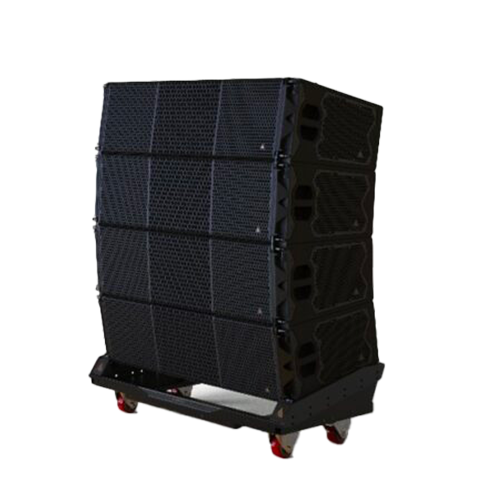

ADAMSON VGT
ADAMSON VGT
| Frequency Range (+/-3 dB) | 50 Hz – 20 kHz |
| Nominal Directivity (-6 dB) H x V | 90° x 6° |
| Maximum Peak SPL** | 151 dB |
| Components LF | 2x ND13-S 13” Kevlar Neodymium Driver |
| Components MF | 2x M140 Kevlar Compression Driver |
| Components HF | 2x 3” Compression Driver |
| Rigging | Autolock™ Rigging |
| Connection | 2x etherCON™ – passive continuity when powerless, Analog XLR3 in & thru, powerCON TRUE1 TOP in & thru |
| Height Front (mm / in) | 338 / 13.3 |
| Height Back (mm / in) | 286 / 11.25 |
| Width (mm / in) | 1306 / 51.4 |
| Depth (mm / in) | 562 / 22.1 |
| Weight (kg / lbs) | 85 / 188 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 – 240 V |
| Current Draw at 230 V | 0.45 A rms idle, 1.6 A rms long-term, 9 A max peak |
| Supported Processing | Onboard, controllable through proprietary software |
| Amplifier Channels | 5 Channel Onboard Class-D, SMPS |
| Processing / Network | User accessible DSP with AVB Milan audio streaming |
| Total Burst Power | 12 KW |
| Operating Voltage | 100 – 240 V |
