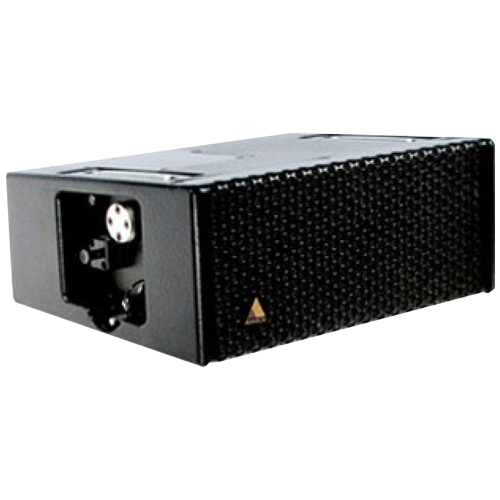

ADAMSON METRIX

ADAMSON METRIX

Infos Constructeur : Adamson Metrix

Fiche Technique : Technical Specs Metrix

Manuel : Metrix

Informations complémentaires

Frequency Range (+/-3 dB) 95Hz – 18kHz
Nominal Directivity (-6 dB) H x V 120° x 5°
Maximum Peak SPL** 136.5
Components LF ND8-LM 8″ Kevlar Neodymium Driver
Components HF B&C DE800 3″ Diaphragm / 1.4″ Exit Compression Driver
Nominal Impedance LF 16 Ω
Nominal Impedance HF 16 Ω
Power Handling (AES / Peak) LF 250 / 1000 W
Power Handling (AES / Peak) HF 110 / 440 W
Rigging The AIR™ Revolving Disc System consists of laser cut steel precisely cut to accommodate 6 positions of splay.

The EIR™ Plate System is a reduced cost and weight solution ideal for permanent installations.

Connection 2x Speakon™ NL8
Height Front (mm / in) 217 / 8.56
Width (mm / in) 540 / 21.25
Depth (mm / in) 420 / 16.5
Weight (kg / lbs) 24.2 / 53.5 (-t), 19.7 / 43.5 (-i)
Supported Processing Lake, XTA
